EDGE CARRY CONVEYORS

Dyna3 offers a selection of standard edge carry conveyors and board handling equipment. Edge Carry Conveyors are used for integration with key process equipment. Edge Carry Conveyors are the optimal choice where component clearance is required beneath the product during processing. We can tailor a module to meet your specific needs including several rail designs and width adjustment options including serveral power with options.


Please select from the below options:

Bare Board Loader

Transfer Conveyor


Workstations

Vertical Buffering


Turn Table/Diverter

Magazine Loader/Unloaders


Board Inverter

Accumulation


Wave Solder Unload

Walk-Through Gate




Bare Board Loader


Used to pick bare boards from a stack and place on conveyor rails for deliver into the process.

  • Operates to load bare boards, or transfer product through
  • Slide width adjustment
  • Operator controls (e-stop, start/reset, cycle stop, pass through
    yes/no, purge)
  • Single color light tower
  • Interlocked safety cover
  • High Capacity – allows for up to 18 inches of product
  • Left to right travel, front fixed rail
  • Enhanced vacuum pick-up system
  • Easy set-up alignment of lift cups to PCBs
  • ESD grounding receptacles
  • Conforms to SMEMA Spec. 1.2 and NFPA 79
  • Back To The Top


Transfer Conveyor

Used to buffer, transfer or audit one or more Printed Circuit Boards depending on the configuration.

  • Variable speed (10-45 fpm)
  • PLC
  • Painted arm rest
  • 4 types of width adjustment
  • available
  • Operator controls (E-Stop, Reset, Release, Audit/Bypass)
  • "Look-up" product sensor
  • Left to right travel, front fixed rail
  • ESD grounding receptacle
  • Painted electrical box
  • Conforms to SMEMA Spec. 1.2 and NFPA 79

Back To The Top


Edge Carry Workstation

Used to buffer, transfer or audit a single PCB.

  • PLC
  • Variable speed (10-45 fpm)
  • 4 types of width adjustment
  • available
  • Operator controls (E-Stop, Reset, Release, Audit/Bypass)
  • "Look-up" product sensor
  • Left to right travel, front fixed rail
  • Overhead light, rear parts shelf and footrest
  • Power outlet strip
  • ESD grounding receptacles
  • Painted sheet metal vanity panels
  • Conforms to SMEMA Spec. 1.2 and NFPA 79



Back To The Top


FIFO Conveyors

A vertical buffering conveyor (First in, first out) providing up to 20 board capacity, that allows control of varying PCB flow.

  • PLC
  • Variable speed (10-30 fpm)
  • Hand crank width adjustment
  • Touch screen interface for machine status viewing
  • Audible alarm / 3 color light tower
  • First in, first out (FIFO) operation
  • Selectable pitch settings (1", 2" or 3")
  • Left to right travel, front fixed rail
  • ESD grounding receptacles
  • Conforms to
    SMEMA Spec. 1.2 and NFPA 79

Back To The Top


LIFO Buffers

A vertical buffering store (last in, first out) providing up to 55 board capacity. Aallows control of varying PCB flow.

  • Durable chain drive for vertical lift system
  • PLC
  • Variable speed (5-18 fpm)
  • Hand crank width adjustment
  • Touch screen interface for machine status viewing
  • Touch screen controls with password protection
  • Audible alarm / 3 color light tower
  • Last in, first out (LIFO) operation
  • Selectable pitch settings (1", 2" or 3")
  • Left to right travel, front fixed rail
  • ESD grounding receptacles
  • Conforms to SMEMA Spec. 1.2 and NFPA 79

Back To The Top

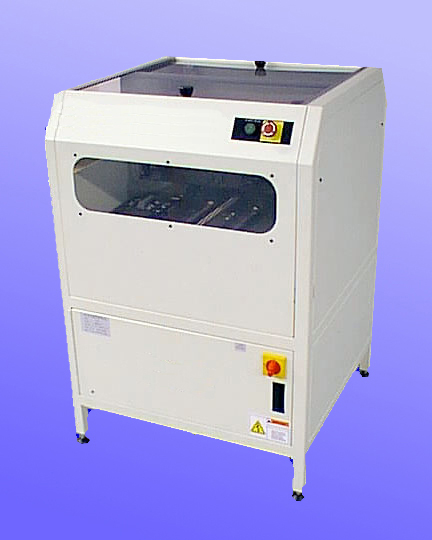

Turn Unit

Used to accept a PCB and route as a "pass through", or "rotate and off-load" at 90 degrees.

  • PLC
  • Shuttle and turn operation
  • Variable speed (10-45 fpm)
  • Slide width adjustment
  • Operator controls (E-stop, Reset, ALT (0°, 90°)
  • 90 degree turn capable
  • Interlocked safety cover
  • Left to right travel, front fixed rail
  • ESD grounding receptacle
  • Conforms to SMEMA Spec. 1.2 and NFPA 79
  • Back To The Top


Magazine Loaders/Unloaders

Loaders Load PCBs into magazines from the production line. Unloaders unload PCBs from magazines into the line. Up to 5 magazines are buffered (2 empty, 2 full, 1 in process).

  • Programmable Logic Controller
  • Integrated staging conveyor with pneumatic arm
  • Variable speed (10-45 fpm)
  • Hand crank width adjustment
  • Touch screen interface for machine status viewing
  • Programmable pitch settings
  • Advanced touch screen controls with password protection
  • "Look up" sensors product sensor
  • Operator controls (E-stop, reset, purge, slot spacing, cycle stop and more)
  • Left to right travel, front rail fixed
  • 3 color light tower and audible alarm
  • Conforms to SMEMA Spec. 1.2 and NFPA 79

Back To The Top


Inverter

Used to invert a PCB for second side assembly.

  • Clamshell design for full top access
  • Fast "center axis" invert and transfer (10 seconds)
  • PLC
  • Variable speed (10-45 fpm)
  • Dual belt design
  • 90-degree turn capable
  • Slide width adjustment
  • Operator controls (E-Stop, cycle stop, start/reset, invert Yes / No)
  • "Look up" product sensors
  • Left to right travel, front fixed rail
  • Conforms to SMEMA Spec. 1.2 and NFPA 79

Back To The Top


Accumulation Conveyors

Accumulates PCBs or pallets by the use of a low-friction chain or by sensing the beginning and end of the product as it enters the conveyor, then indexing for a preset time to create a gap.  Applications include unloading ovens, wave solder machines and buffering product between process stations.

  • Pneumatic stop
  • at exit to control product flow
  • PLC
  • Low friction, flat link polyacetal chain
  • Variable speed (10-45 fpm)
  • 4 Types of width adjustment available
  • Operator controls (E-Stop, reset)
  • "Look up" product sensors
  • Left to right travel, front fixed rail
  • ESD grounding receptacles
  • Painted sheet metal panels
  • Conforms to SMEMA Spec. 1.2 and NFPA 79

Back To The Top


Incline/Decline Wave Unload Transfer Conveyor

Matches the exit incline angle of the wave solder machine and then declines the PCB or pallet to transfer to the next process. The unit shown includes an optimal cooling hood on the decline section and hand crank width or follow-the-leader width adjustment to track the width of the solder wave conveyor.

  • PLC
  • Variable speed extended pin chain transport
  • Welded steel framework
  • Banana jack grounding receptacles (2)
  • Hand crank width adjustment 3.5" - 18"
  • Follow-the-Leader width adjustment available
  • Conveyor length: custom length for your application
  • Extended pin chain
  • Optional: Cooling Hood Assembly (8,12 or 16 available)
  • Conforms to SMEMA Spec. 1.2 and NFPA 79

Back To The Top


Shuttle Gate

Provides a normally open or normally closed walkway through a production line. The shuttle gate automatically transfers product across a clear walkway once the downstream process is ready.

  • PLC
  • Variable speed (10-45 fpm)
  • Supports walkways of 36" – 42"
  • Operator controls ( 2 - E-Stop, 1 - Reset)
  • Safety "Stop" walkway floor mat (other options available)
  • UPS backup system for "auto-retract" during power outage
  • "Look-up" product sensor
  • Left to right travel, front fixed rail
  • Extends to deliver product
  • Audible alarm signals walkway closure
  • Single color status light tower
  • Painted sheet metal vanity panels
  • Conforms to SMEMA Spec. 1.2 and NFPA 79
  • Back To The Top


    Lift Gate

    Provides a normally closed walkway through a production line. The gate is raised manually for access through the line. Ideal for applications where infrequent access is required.

    • PLC
    • Dual speed for enhanced process interface
    • Single action rail width adjustment
    • Supports walkways of 36" – 42"
    • Operator controls ( 2 - E-Stop, 1 - Reset)
    • "Look-up" product sensor
    • Left to right travel, front fixed rail
    • Status light tower
    • Conforms to SMEMA Spec. 1.2 and NFPA 79

    Back To The Top
